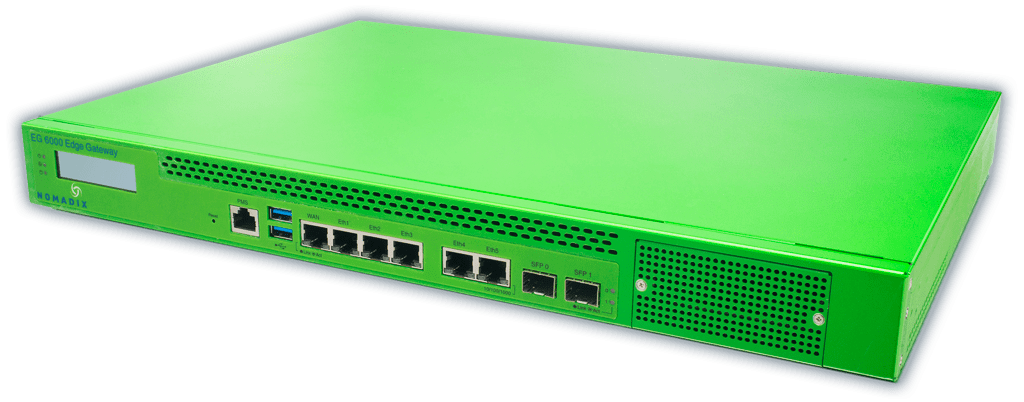

Nomadix EG 6000 Access Gateway
Reliable, Scalable, Flexible, High-Performance Internet Edge Gateway Appliance


Nomadix EG 6000 Access Gateway


Nomadix Access Gateways
Nomadix EG 6000 Access Gateway
EG 6000 Gateway
#EG-6000
Get a Quote!

More pricing below, click here!

Overview:

Nomadix gateways have been the industry standard in hospitality for 25 years with tens of thousands of gateways supporting millions of rooms worldwide. Powered by patented technology, Nomadix’s family of internet access gateways is designed with reliability and scalability in mind to accommodate small, medium and large-sized venues — from hotels to airports to stadiums and convention centers.

Nomadix Gateways are powered by the Nomadix Service Engine (NSE) software that provides authentication, guest landing pages and bandwidth management. These solutions have earned a global reputation for unparalleled reliability and ease of management.

EG 6000

The EG 6000 is ideal for mid-to-large venues where support for thousands of simultaneous devices is desired. This high-performance gateway enables the creation of a high-speed visitor-based network (VBN). The gateway offers the flexibility to support from 1000 to 6000 devices and up to millions of devices by clustering gateways. With a throughput of up to 6 gigabits per second, it is ideal to support growing bandwidth demand while ensuring an optimal guest experience.

Features & Benefits

  • Reliable internet access supported by two decades of development and testing
  • Robust authentication and controls for configuration, management and VBN creation
  • Bandwidth management, allocation and controls to ensure users get the right bandwidth levels with unused bandwidth redistributed to optimize the experience
  • Scalable to accommodate small- to large-size networks (from boutique bed & breakfast properties to resorts to convention centers)
  • IPv6 Certified by the IPv6 Forum starting with version 8.15

Features

Reliability

Nomadix has invested more than two decades of development and quality assurance to create a proven, reliable solution. Each release goes through vigorous testing to ensure the gateways can handle the load and specified functionality.

Nomadix gateways are built on an embedded operating system, which removes the reliance on open-source code that many other systems utilize and the corresponding security concerns.

The Nomadix NSE software runs on hardware designed to have a large mean time between failure (MTBF) for further reliability and stability. Nomadix also has a well-trained support staff to provide timely responses to any questions.

Custom-Branded Guest Landing Pages

The NSE software allows admins to create and maintain a dedicated captive portal that can be hotel-branded so that guests have a seamless experience. When used with the Nomadix Hotel Portal, MSPs and hotel admins have additional branding options and guest authentication flows.

Bandwidth Management and Control

Nomadix provides a variety of bandwidth management capabilities that enable properties to maximize their bandwidth investment. Internet circuits do not need to be upgraded as frequently even as usage demand continues to grow. Nomadix gateways support bandwidth management per device, per location by VLAN bandwidth limits or per group.

Additionally, bandwidth capping allows for the granular control of tiered access levels for different groups. Bandwidth prioritization, for VIP guests for example, allows different types of users or groups to access available bandwidth before others. Admins can also manage utilization of unused bandwidth to offer additional access beyond the capped limits when it is available.

Authentication

Nomadix gateways support multiple authentication methods, including integration with property management systems (PMS), credit card, RADIUS authentication, access codes, Facebook and Paypal. SMS, vouchers, China market support and brand-specific authentication flows for Hyatt and Marriott are supported authentication methods when paired with the Nomadix Hotel Portal.


How It Works

Nomadix gateways allow guests to access the internet without making changes to their network settings. "Set and forget" functionality requires configuration only once during setup without the need for future administration.

Once initial access is configured, other equipment, such as switches and access points, can also be managed. Interoperability with switches and networking standards allows for many different network topologies. A Nomadix gateway running the NSE software supports all networks that follow basic network specifications for packet forwarding and routing. The gateway is network-equipment agnostic as long as all switches, APs, GPON and other networking equipment follow standard networking specifications.

EG6000 Specification

Features And Functionality

Physical And Environmental


Plug and Play
(DAT) Dynamic Address Translation>
Dynamic Transparent Proxy
IPv6

Service Provisioning
Home Page Redirect
HTTP & HTTPS Redirect
Portal Page Redirect
Session Termination Redirect
Information and Control Console
Pop-up Logout Button
International Language Support
External Portal WEB Server Mode
Internal Portal WEB Server Mode
Secure XML API Over SSL
Login Page Failover
SMTP Redirection

Network Management
Multi-Level Administration
Centralized RADIUS Authentication
Access Control
WEB Based Interface (WMI)
Command Line Interface (CLI, SSH)
RADIUS Driven Configuration

Bridge Mode
SNMP V2c
System/AAA Log
TR069
NTP Support

Policy-Based Traffic Shaping
Class-Based Queueing
Weighed Fair Queueing
Distribution of Unused Bandwidth
Group Bandwidth Management
QoS Tagging (802.1p & Diff Serv)
Per Device Bandwidth Capping

Reliability
Multi WAN link Load Balancing & Failover
Multi-Unit Clustering
Configuration Backup and Restoration
Watchdog
Active / Passive High Availability Failover
LACP Link Aggregation Control Protocol

IP Address Management
IEEE 802.3/3ul/3ab
DHCP Server, Client and Relay
Multi Subnet Support
IP Upsell
PPPoE Client

Billing Plans Enablement
RADIUS Client
RADIUS Proxy
Port Based Policies
VLAN / Port Mapping
Local Database
Property Management System (PMS)
Credit Card Interface (Paypal)
Bill Mirroring

Access Control and Authentication
Authorization, Authentication & Accounting (AAA)
Walled Garden
Group Accounts
Tri-Mode Authentication
Universal Access Method over SSL
IEEE 802.1x
Smart Client Support (Boingo, iPass)
MAC Authentication
Remember-Me Login
Access Codes

Advanced Security
iNAT
IPsec Support
PPTP Support
Session Rate Limiting
URL Filtering
MAC Address Filtering
ICMP Blocking
Proxy ARP for Device to Device Communications
Lawful Intercept, monitoring, logging and
compliance with legislative requirements
User Agent Filtering

VLAN Support
IEEE 802.1Q
IEEE 802.1ad

Physical I/O Ports
6 x GbE RJ45, WAN or LAN confi gurable, ACT/ LINK status LEDs for each port
2 x GbE SFP (Small Form Factor) WAN or LAN configurable, Requires fiber transceiver
2 x USB 3.0 Console Port, Requires optional USB to RS232 connection cable
2 x GbE SFP+ (Small Form Factor) WAN or LAN configurable, Requires fiber module & tranceiver
1 x RJ45 Optional Asynchronous PMS Port

Mechanical
1 x expansion slot for SFP+ 10Gb Fiber Module
1 x LCD display with Software Version, NSE ID and Primary WAN IP Address.
1 x reset button
1 x Power Status Indicator
1 x ATX Power Switch
Passive CPU Heat Sink
2 x Smart Fans

Power
AC 90~264V @47~63 Hz
220W ATX Single PSU

Physical
438mm x 44mm x 321 mm
(17.24″ x 1.73″ x 12.64″)
Weight: 7.5 kg (16.5 lbs)
1U - 19″ Rack Mount Installation Kit included
Color: Nomadix Green

Environmental
Operating temperature: 0°C to 40°C
Operating humidity: 5% to 90% (noncondensing)
Storage temperature: -20°C to 70°C
Storage humidity: 10% to 95% (noncondensing)

Certifications
RoHS, CE/FCC Class A, UL, CCC

Capacity
Supports for 50-800 doors


Performance
Base System (3.0 Gb) Maximum License (6.0 Gb)
RFC 2544 (1024 Frame Size) HTTP 8000 RFC 2544 (1024 Frame Size) HTTP 8000
Frames Per/Sec Gbps 2.9 Gbps Frames Per/Sec Gbps 5.8 Gbps
380k FPS Measured 1,220 max media FPS 2.9 Gbps 802k FPS Measured 1,220 max media FPS 6.5 Gbps

Notes:

  1. Tested using IXIA.
  2. Fast forwarding enabled and SFP+ 10G Fiber Ports utilized.
  3. UDP Protocol.

Documentation:

Download the Nomadix Gateways Datasheet (PDF).
